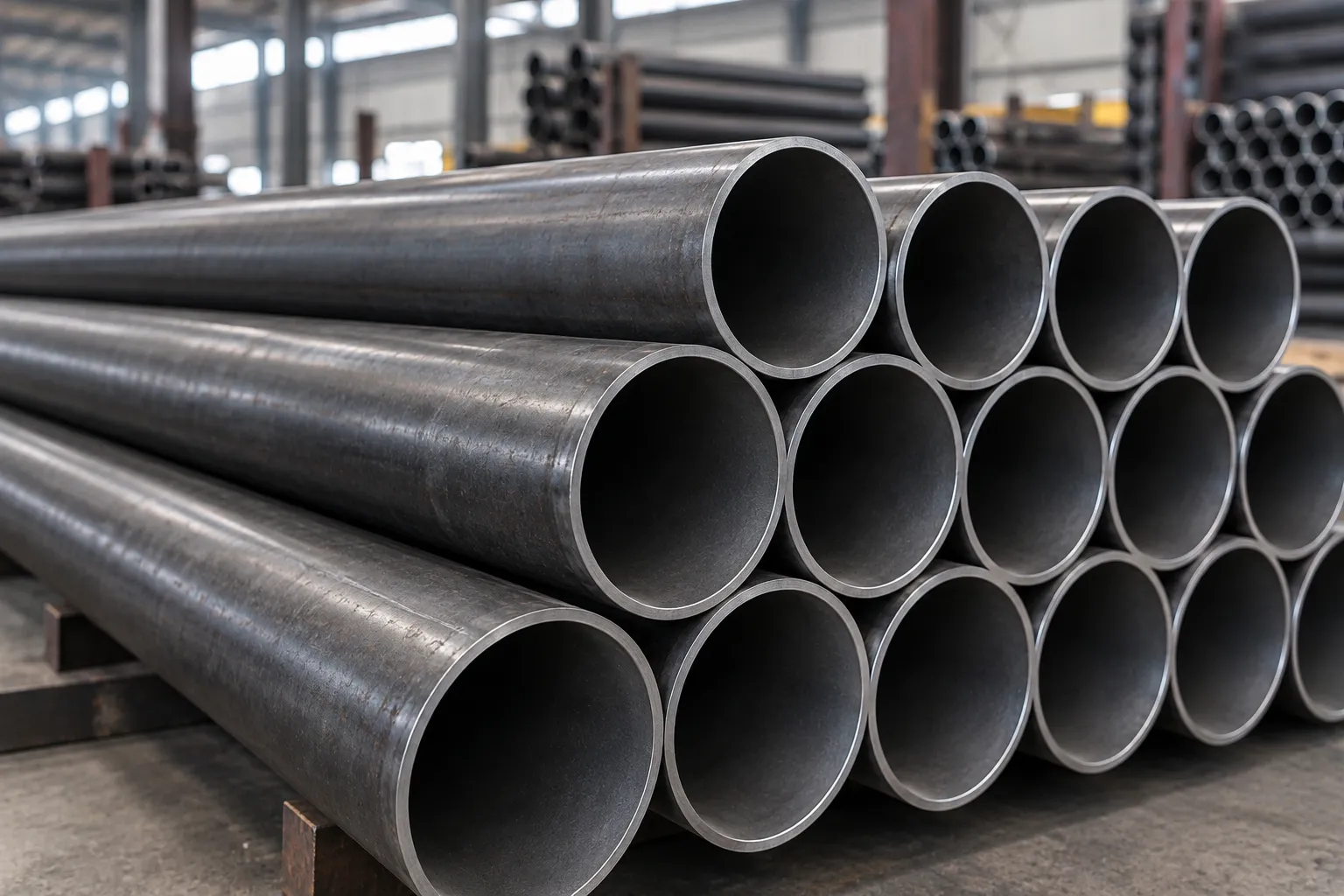

4130 Round Tubing
Round is the natural shape for seamless 4130 tubing and the most efficient one for a member loaded in several directions. Three geometric qualities decide how well a round tube performs: ovality, straightness and wall uniformity.
Why Round Cross-Section Matters
For structural applications such as roll cages, airframes, and bicycle frames, round (circular) cross-section tubing is typically mandated by the applicable specification or rulebook. The circular cross-section provides equal section modulus in all bending directions, optimal efficiency for torsional loading, and the smoothest load transfer at tube joints. All major motorsport sanctioning bodies (NHRA, FIA, SCCA) require circular cross-section tubing for primary safety structures.
| Parameter | 4130 Round Tubing |
|---|---|
| Cross-section | Circular — specified by OD and wall |
| Manufacturing form | Cold Drawn Seamless (CDS) — standard |
| OD range (verified) | 0.25 in – 5.0 in |
| Wall range (verified) | 0.035 in – 0.500 in |
| Primary standard | ASTM A519 |
| Roll cage / structural | Required form — verify applicable rulebook |
| Documentation | EN 10204 3.1 MTC available |
Roundness, Straightness and Eccentricity
- Ovality is the difference between the largest and smallest diameter at one cross-section. Excess ovality upsets slip fits and notched joints.
- Straightness is the deviation of the tube from a straight line over a given length. It matters for shafts, long members and automated cutting.
- Eccentricity is the variation in wall thickness around the circumference, caused by the bore being off-centre. It matters where the wall is near a minimum or where a part is machined.
The tube standard places limits on diameter and wall, and tighter control can be requested where the application needs it. Thin-walled tube is more prone to ovality after handling, so ask for careful packing on light sizes. For dimensions see the size chart; for closer limits see precision tubing.
Tube vs. Bar in 4130 Alloy
4130 alloy is available in two primary product forms: hollow tube and solid bar (rod). When a buyer specifies '4130 hollow tubing', they are confirming the hollow product form — not the solid bar that is also used as machining stock. The hollow tube in 4130 is the CDS seamless tube governed by ASTM A519. Solid 4130 bar is governed by ASTM A29.
| Product Form | Standard | Primary Use |
|---|---|---|
| 4130 hollow tube (CDS) | ASTM A519 | Structural fabrication, aerospace, motorsport |
| 4130 solid bar / rod | ASTM A29 | Machining, turned parts, shafts |
| OD range (tube, verified) | 0.25 in – 5.0 in | Project source data |
| Wall range (tube, verified) | 0.035 in – 0.500 in | Project source data |
Choosing Hollow Stock for Machining
Tube is dimensioned by outside diameter and wall, with tolerances suited to use as-supplied. Hollow bar is a heavy-walled hollow intended purely as machining stock; it is sized by OD and ID together with the largest finished OD and smallest finished bore it is guaranteed to clean up to.
To choose, start from the finished part. Add machining allowance to the OD and subtract it from the bore, then look for the tube or hollow whose limits contain those figures. Thick-walled 4130 tube does the job for many parts, and the saving over solid bar grows with the bore size, since less metal is cut away and less time is spent drilling. State the finished dimensions in your enquiry so a suitable starting size can be offered. Related pages: heavy wall tubing and mechanical tubing.
Round Tube and Hollow Tube
"Hollow tube" and "round tube" describe the same product. A hollow section in 4130 is specified by outside diameter and wall thickness, exactly as round tube is.
Frequently Asked Questions
Is all standard 4130 tubing round?
The predominant commercial form is round (circular). Square and rectangular 4130 tubing is available but is not a standard catalogue product and is less widely stocked. For roll cages and airframes, round tubing is required.
What is ovality in tubing?
The difference between the maximum and minimum outside diameter measured at the same cross-section.
Why is round tube preferred for frames?
It resists bending equally in every direction and resists twisting better than other shapes of the same weight.
How straight is 4130 round tubing?
Tube is straightened at the mill to the limits of the standard. Closer straightness can be requested for shafts and rollers.
What causes wall eccentricity in seamless tube?
The piercing process can leave the bore slightly off-centre. Cold drawing reduces the variation.
Can ovality be corrected?
Light ovality in thin tube can often be corrected in fabrication. Specify tighter limits if the fit is critical.
How is tube straightness measured?
As the maximum gap between the tube and a straight edge over a stated length.
Is 4130 hollow tubing the same as 4130 bar with a hole bored through it?
No. 4130 CDS hollow tube is produced by the seamless tube manufacturing process (billet piercing and drawing) — not by boring a solid bar. Boring a solid bar to create a hollow section produces different grain flow and dimensional characteristics, and is not the standard tube product.
What is the difference between tube and hollow bar?
Tube is sized by OD and wall for use as supplied. Hollow bar is thick-walled machining stock sized to guarantee clean-up dimensions.
Source 4130 Round Tubing
Specify OD and wall for circular cross-section 4130 in Cold Drawn Seamless form.
